Name: 400W LED BSW Moving Head Light | Beam Spot Wash
Availability: InStock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

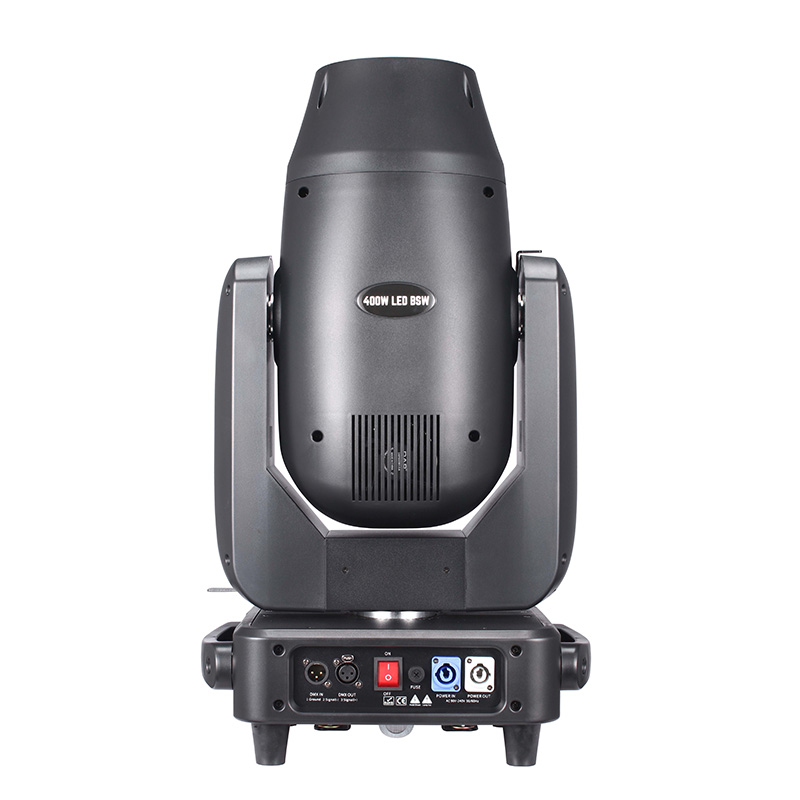

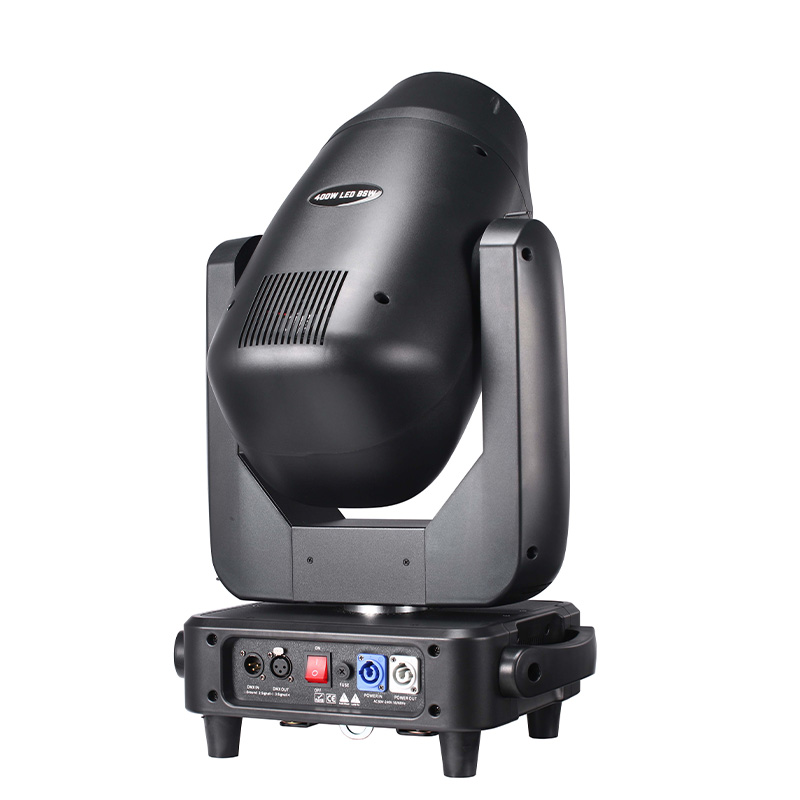

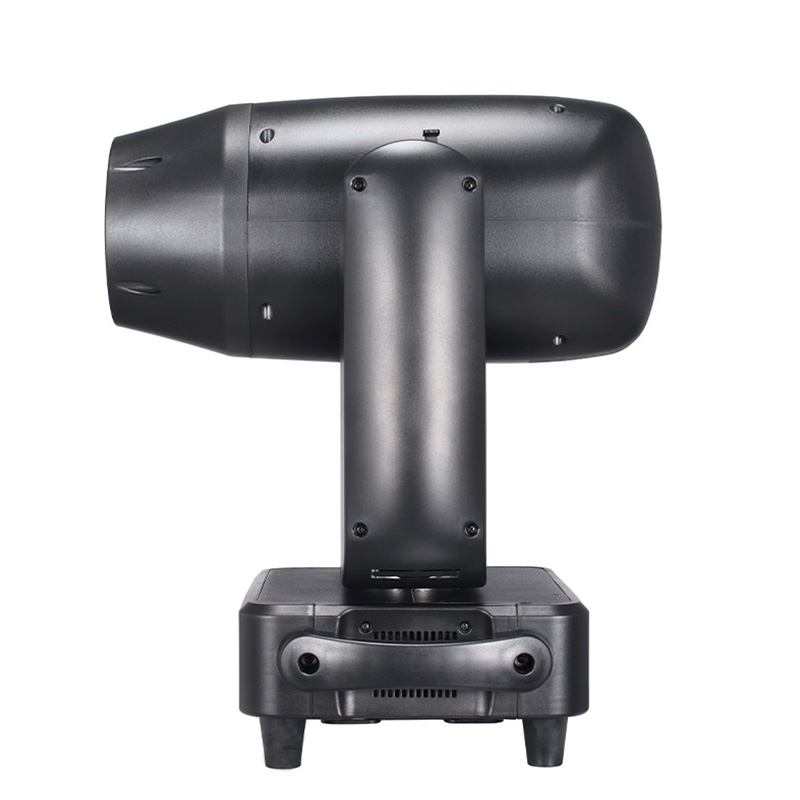

400W LED BSW Moving Head Light | Beam Spot Wash

Nowlit 400W LED 3in1 BSW Moving Head Light.Built-in linear CMY/CTO, color wheel, fixed/rotating gobo wheel, double prisms. creating dynamic visual effects

Brand model :
QR-LM400
Input voltage :
AC100V-240V, 50/60Hz
Light source :
400W LED module
Color wheel :
8+1/CMY/CTO
Product size :
38*26.9*68.4cm
Net weight :
23.5kg
Protection level :
IP20

Inquiry Now

Function Description

Nowlit 400W BSW 3in1 Moving Head Light features an integrated single 400W LED light engine, combining beam, gobo, and wash three-in-one functions to inspire more creative possibilities. Equipped with a high-quality 138mm optical lens, it projects a uniform and sharp light beam, delivering an impressive 272,000 Lux at 10 meters. The fixture is equipped with a linear CMY color mixing system and linear CTO adjustment, along with one color wheel, one fixed gobo wheel, and one rotating gobo wheel, complemented by dual prism effects. This 400W three-in-one multi-functional moving head light is suitable for various scenarios including stages, auto shows, fashion shows, bars, and more, helping you effortlessly create stunning and dynamic visual effects.

Technical parameters

Light Source System

Light source specification: 400W LED module
Light source color temperature: 7720K
Light source life: 20000 hours

Optical System

Zoom range: electron linear zoom 4.5-35 degrees
Lens diameter：138mm
Lux：29600 Lux@10m

Color System

Independent CMY color mixing system
Linear CTO color temperature correction (7700-3200K)

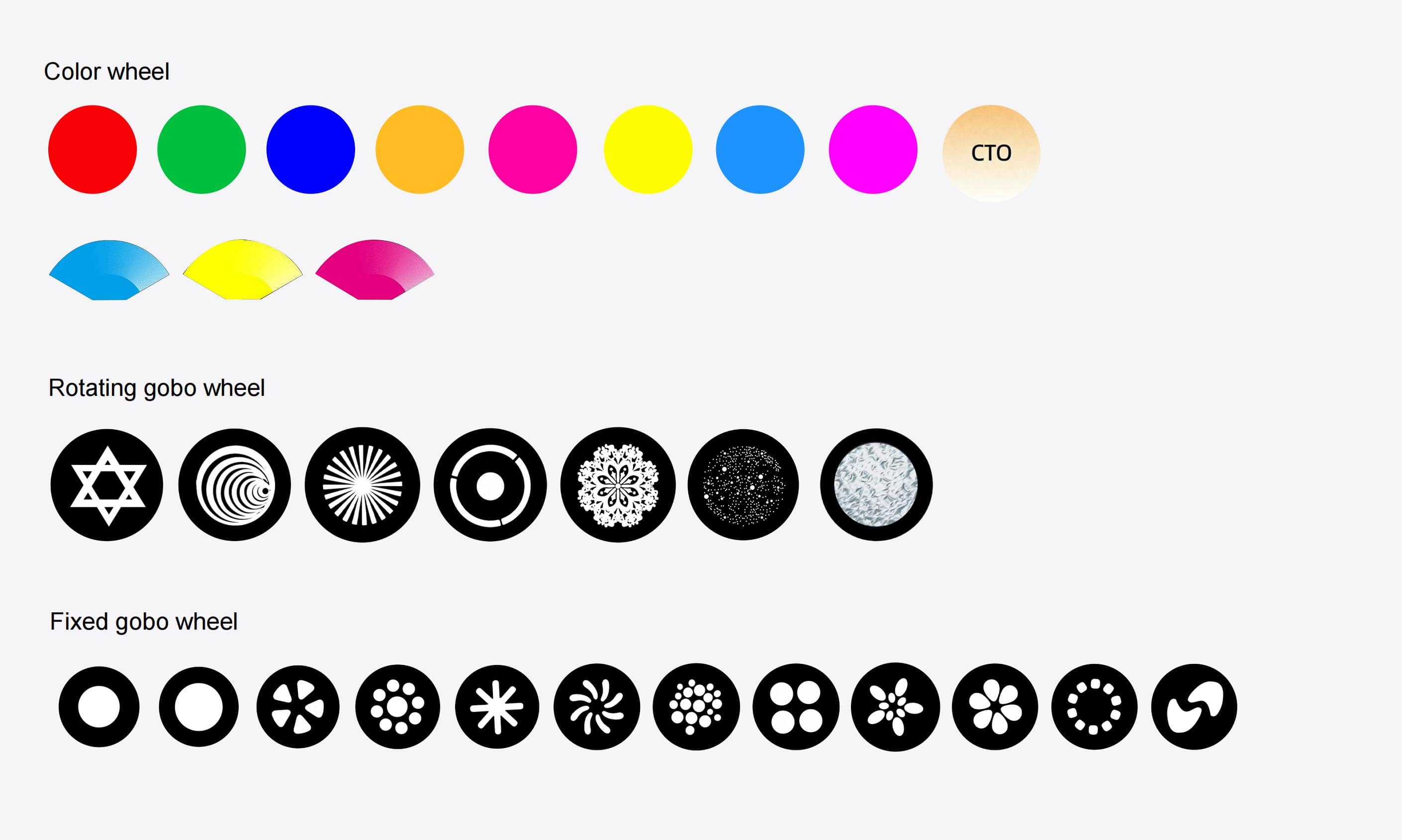

1 Independent Color Wheel with 8 Colors, featuring step and linear color-changing modes

Gobo system

Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
Gobo sheet size: outer diameter 22.9mm±0.2mm, inner diameter 14mm, thickness 1.1mm
Fixed gobo wheel: 12 fixed gobos+white, which can change speed and shake

Effect

Prism: 8 facet prisms and 6 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan &Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 450W
Signal interface: 3-coreXLR signal input/output

Control & Programming

Control protocol: standard DMX512/RDM protocol
Channel mode: 23CH
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

Product appearance: nylon flame-retardant, heat-resistant.
Working environment: -20 ° C to 40 ° C
Protection level: IP20

Size & Weight

Product size: 38*27*67cm (L*W*H)
Net weight: 22.9kg

FAQ

1. What types of applications is this fixture suitable for?

• This is a 3-in-1 LED moving head fixture integrating beam, wash, and spot functions. It is suitable for a wide range of applications, including stage performances, product launches, auto shows, fashion shows, bars/nightclubs, and various entertainment venues.

2. Are the projected gobos sharp and clear?

• The fixture features a 138mm high-quality optical lens system, ensuring sharp gobo projection with well-defined edges. Combined with the 8-facet and 6-facet dual prism system, it creates multi-layered beam structures with strong spatial depth, enhancing the stage’s three-dimensional visual effect.

3. What is the zoom range?

• It supports 4.5°–35° electronic linear zoom. The zoom transition is smooth, allowing a natural shift from a tight, powerful narrow beam (4.5°) to wide-area wash coverage (35°), meeting the needs of different stage zones and lighting effects.
