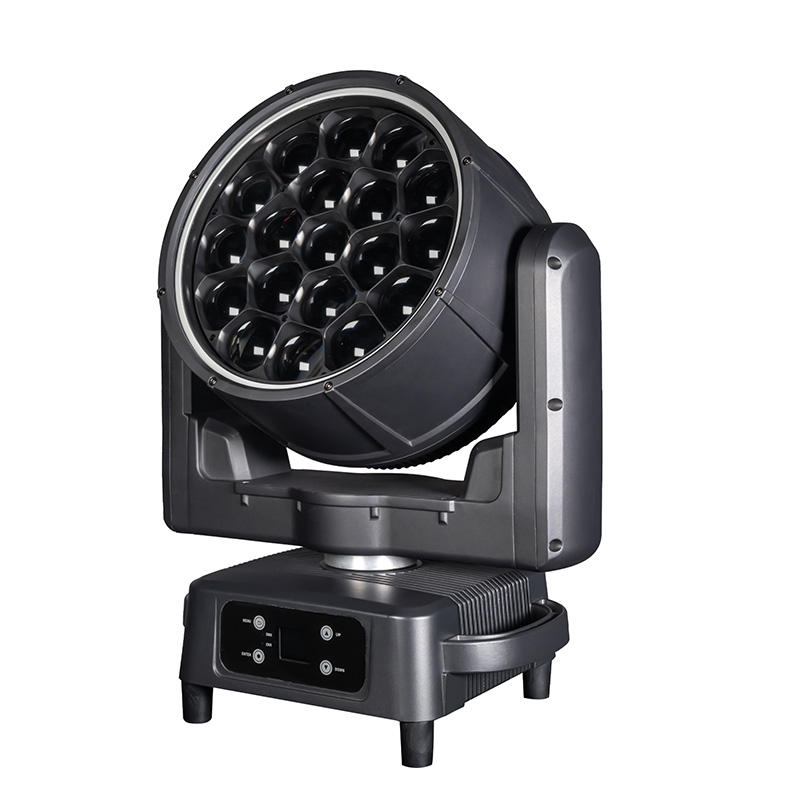

Waterproof 19*40W RGBW Moving Head Bee Eye Light IP65

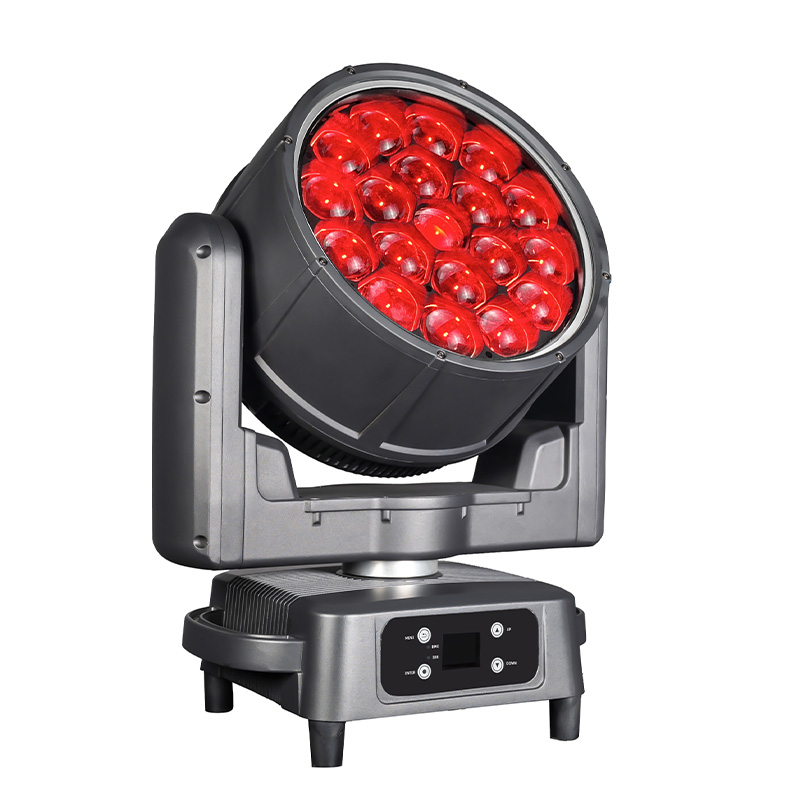

Waterproof 19×40W RGBW LED Moving Head Wash Light for stage and outdoor events

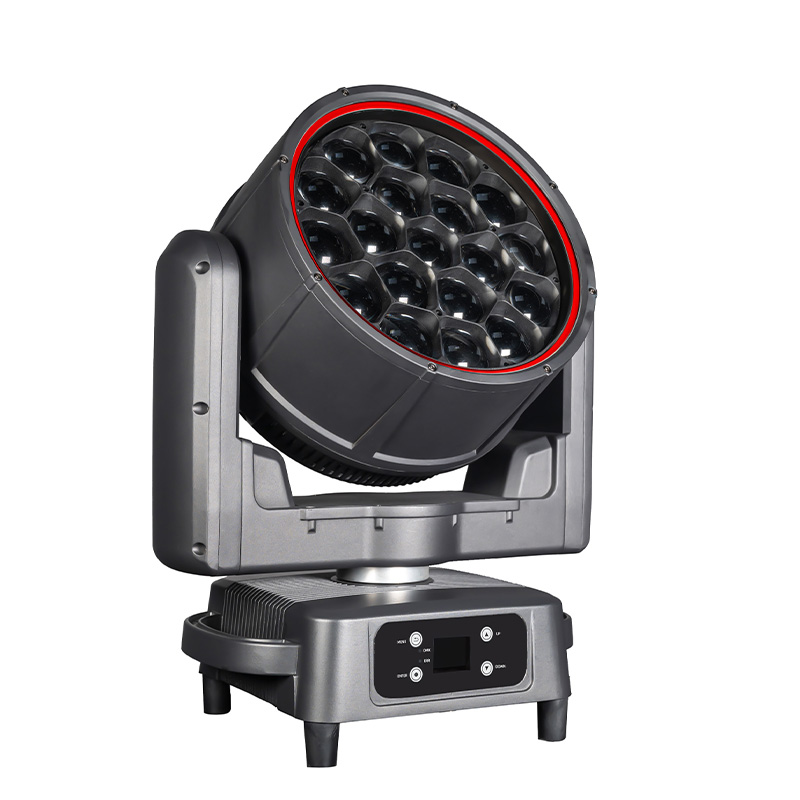

IP65 19*40W RGBW Moving Head Bee Eye Light for live performances and concerts

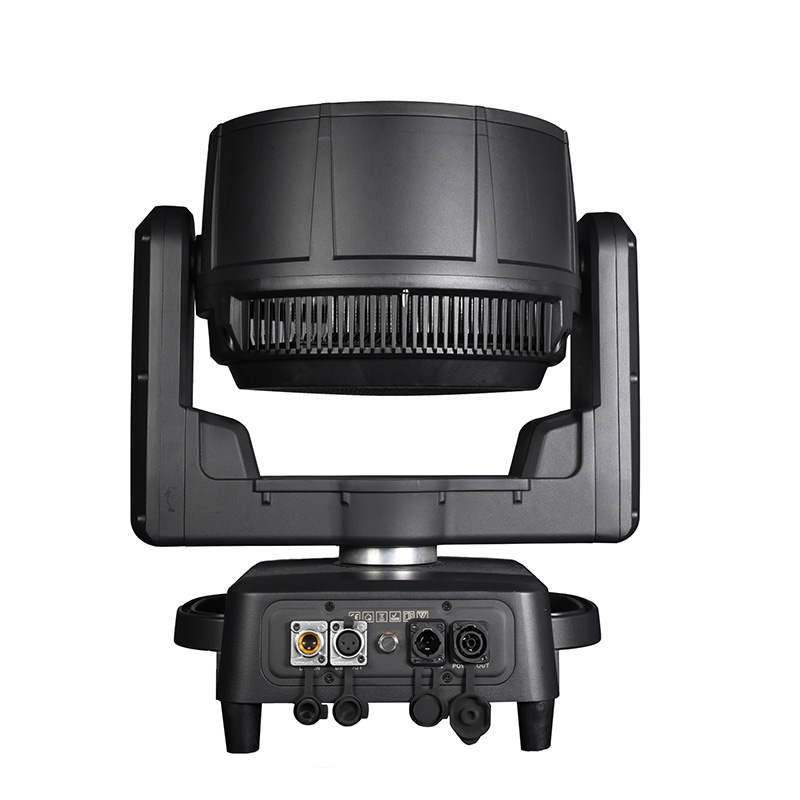

IP65 waterproof 19×40W RGBW LED stage wash light with dynamic effects for concerts and outdoor events

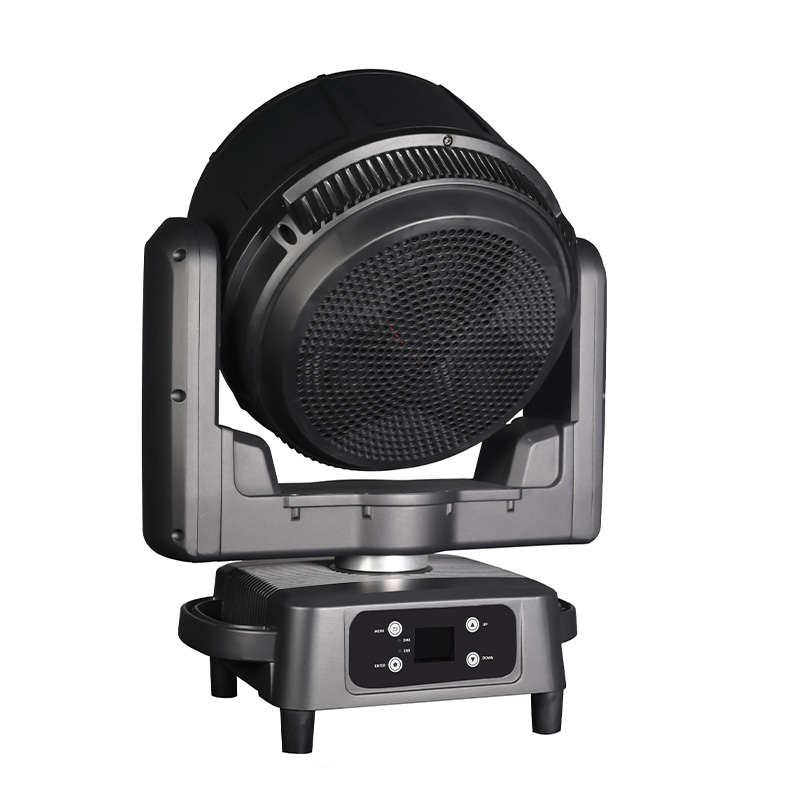

Waterproof 19*40W RGBW Moving Head Bee Eye Light IP65
Waterproof 19*40W RGBW Moving Head Bee Eye Light IP65

Waterproof 19*40W RGBW Moving Head Bee Eye Light IP65

Waterproof 19×40W RGBW LED Moving Head Wash Light is designed for stage performances and outdoor events,offering a feature-rich,compact professional stage lighting solution.

  • Brand model :

    QR-WK15
  • Input voltage :

    AC100V-240V, 50/60Hz
  • Light source :

    19*40W RGBW LED
  • Product size :

    43*26*50cm
  • Net weight :

    21kg
  • Protection level :

    IP65
  • Channel mode :

    21CH/30CH/35CH/42CH/78CH/92CH/97CH/106CH
Inquiry Now

Function Description


Waterproof 19×40W RGBW LED Moving Head Wash Light is designed for stage performances and outdoor events.It features 19×40W RGBW LED main light sources and 53×0.5W RGB auxiliary light sources,providing powerful illumination and rich visual effects.The beam angle is adjustable from 4°to 45°supporting both static and dynamic effect macros.The light effect is uniform,flicker-free,and offers color changes and rainbow effects, meeting the demands of various scenarios.The light allows for both independent control of the inner and outer rings,as well as single LED control,offering high creative freedom and expressiveness for lighting designers.

Equipped with high-precision PMMA lenses and high-transmission quartz glass light guides,it ensures excellent light uniformity and transparency.The built-in intelligent temperature control system and silent fan optimize heat dissipation,extending the LED lifespan.With an IP65 waterproof rating and durable aluminum housing with UV-resistant engineering plastic,it ensures reliable operation in harsh outdoor environments.Its compact design makes it perfect for stage performances outdoor music festivals, cultural and tourism performances,and other settings.This is a high-efficiency,feature-rich,and reliable professional stage lighting solution.

Technical parameters


Light Source System

  • Main light: 19*40W RGBW LED
  • Auxiliary light: 53*0.5W RGB LED
  • Light source life: >20,000 hours

Optical System

  • Beam angle: 4–45 degrees
  • High-precision integrated PMMA lens structure, high-transmittance quartz glass light guide rod
  • Front halo LED strip: Individually controllable pixels, free chasing, flowing marquee, color-changing effects

Color System

  • Color: RGBW color mixing system with uniform mixing, flicker-free output, fast rainbow color effects
  • Color temperature control: Built-in CTO
  • Front halo LED strip: Individually controllable pixels, free chasing, flowing marquee, color-changing effects









Effect

  • Effect macro: Static and dynamic effect macro functions
  • Strobe: 1–25 Hz electronic strobe with multiple random strobe effects
  • Dimming: Electronic dimming
  • Zoom system: Linear motorized zoom
  • Dimming: 0–100% linear dimming
  • Lens rotation: 360° continuous optical lens rotation, variable kaleidoscope, “small waist” and other effects
  • Single-ring control: Light source supports independent inner and outer ring color control
  • Single-pixel control: Light source supports individual LED control and color changes

Electrical & Interface

  • Rated power: 750W
  • Input voltage: AC 100V–240V, 50/60Hz
  • Signal interface: 3-pin or 5-pin XLR input/output



Pan & Tilt

  • Pan/Tilt Movement: 540°/270°, with automatic reset and 16-bit fine positioning
  • High-precision optical encoder positioning system for both pan and tilt

Control & Programming

  • Channel mode: Built-in 8 channel modes
  • 21CH / 30CH / 35CH / 42CH / 78CH / 92CH / 97CH / 106CH
  • Protocol: Standard DMX512 protocol, RDM protocol
  • Software can be easily updated via DMX signal
  • Silent fan with intelligent speed control
  • Intelligent temperature protection to ensure LED lifespan

Fixture Structure

  • Latest second-generation waterproof structural design
  • Metal pressure-cast appearance: Die-cast aluminum housing with flame-retardant, UV-resistant engineering plastic
  • Fan cooling system
  • Protection level: IP65
  • Working environment: -20°C to 45°C



Size and weight

  • Product size: 43*26*50 cm
  • Net weight: 21kg
