12*40W Beam Wash Bar With Zoom Wash/Strobe Bar

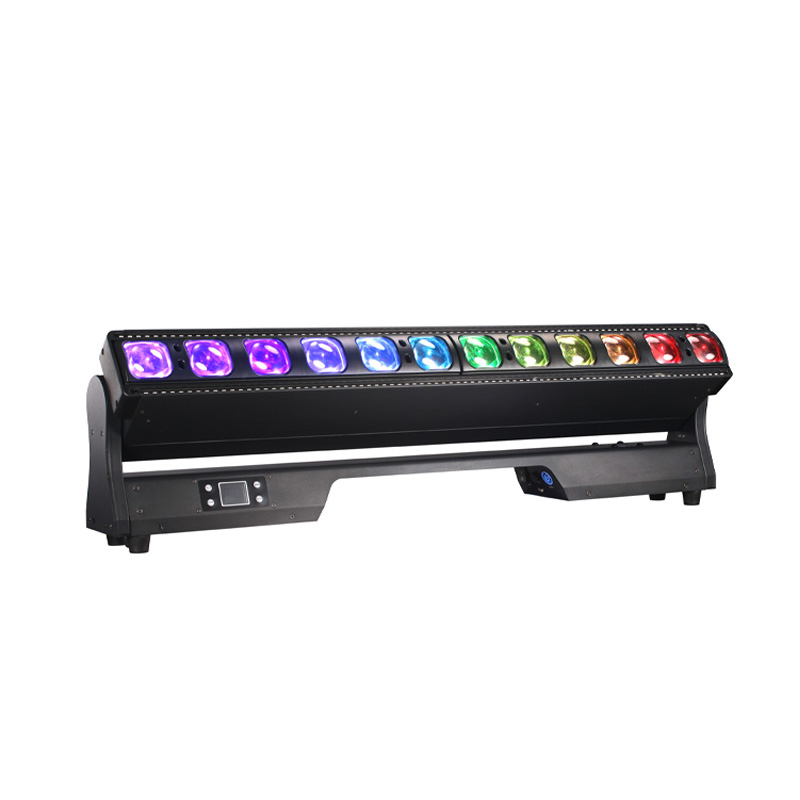

OEM ODM 12x40W pixel snake light manufactured by professional stage lighting factory

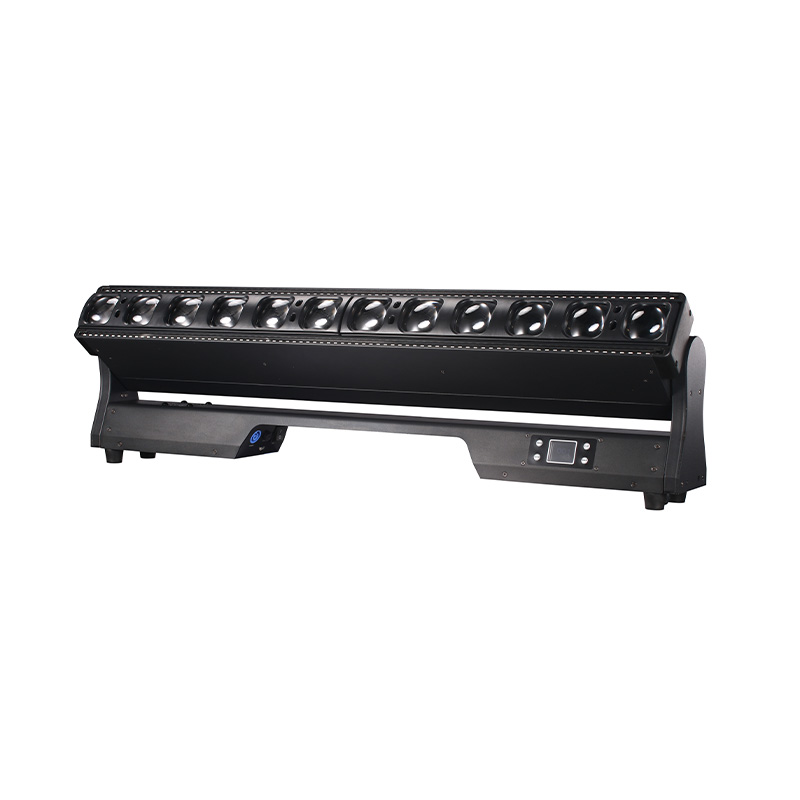

12x40W pixel snake light manufactured by professional stage lighting factory

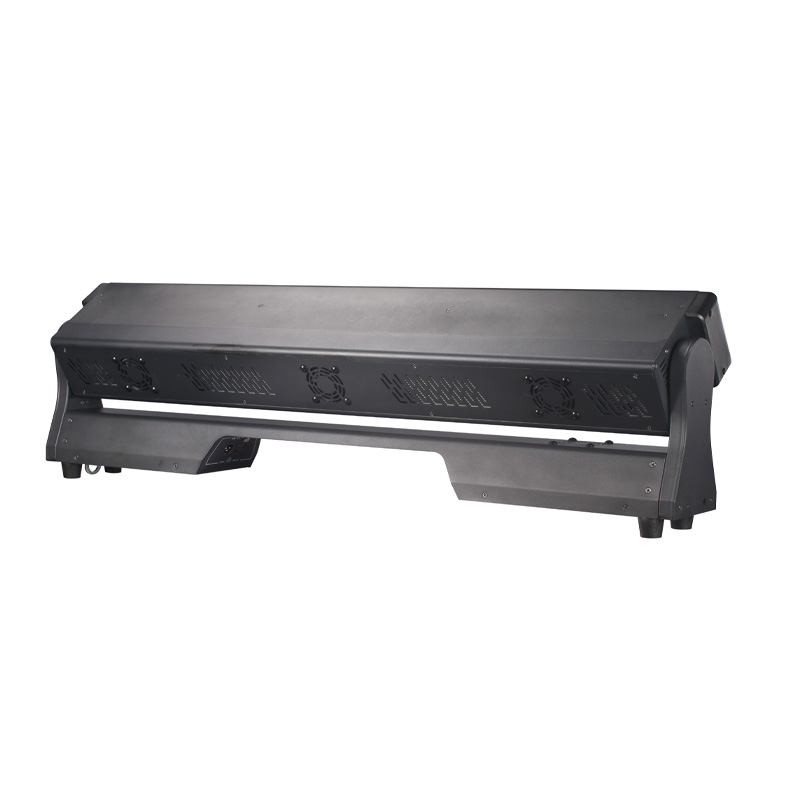

Professional pixel bar snake light for rental and event lighting

12*40W Beam Wash Bar With Zoom Wash/Strobe Bar

12x40W Pixel Bar Light delivers powerful RGBW beams,rich effects,and smooth color mixing with 2.8–31° zoom,ideal for stage,club,event,and rental use.

  • Brand model :

    QR-MX1240
  • Input voltage :

    AC100V-240V 50/60Hz
  • Light source :

    12x40W RGBW LED
  • Product size :

    100*12*29cm
  • Net weight :

    14.8kg
  • Protection level :

    IP20
  • Channel mode :

    28/67CH
Inquiry Now





Function Description


12×40W Pixel Snake Light features twelve 40W RGBW LED light sources combined with 164 units of 0.5W RGB LED strips, delivering high brightness with smooth and even color mixing.  With 40 built-in main light effects and 23 auxiliary light effects, along with seamless RGBW mixing and rainbow effects, it creates rich, dynamic, and visually engaging lighting layers.

The fixture supports a zoom range from 2.8° to 31° and an adjustable beam angle from 5° to 45°, allowing smooth transitions between focused beams and wide wash effects to suit different venues and stage designs.  It is ideal for stage performances, bars, clubs, commercial events, and lighting rental applications.

Technical parameters


Light Source System

  • Main light specification: 12x40W RGBW LED
  • Auxiliary light specifications:164*0.5w RGB LED
  • Light source life: >20,000 hours

Optical System

  • Zoom range: Beam Angle: 2.8°-31°
  • Spot angle: 5°-45°

Color System

  • Uniform RGBW color mixing system and rainbow effect
  • Creates unlimited dynamics and endless color transformations

Effect

  • Fast electronic strobe: 1-25 Hz
  • Dimming mode: 0-100% linear dimming
  • Built-in Effects:40 Effects (Main Light),23 Effects (Auxiliary Light)

Tilt

  • Y-axis Rotation Angle: 202°

Electrical & Interface

  • Rated Power: 500W
  • Input Voltage: AC100V-240V 50/60Hz
  • Signal Interfaces:3-pin or 5-pin XLR input/output

Control & Programming

  • Control Channels:28/67CH
  • Protocols: Standard DMX512 protocol, RDM protocol
  • LCD display operation panel
  • Convenient and fast software upgrade via DMX signal
  • Mute fan with intelligent speed regulation
  • ntelligent temperature protection to ensure LED lifespan

Fixture Structure

  • Product appearance: Aluminum alloy structure + flame-retardant engineering plastic shell
  • Heat Dissipation: Fan cooling
  • Protection Level: IP20
  • Working Environment: -20℃ to 45℃

Size and weight

  • Product Size: 100*12*29cm
  • Net Weight:14.8kg
