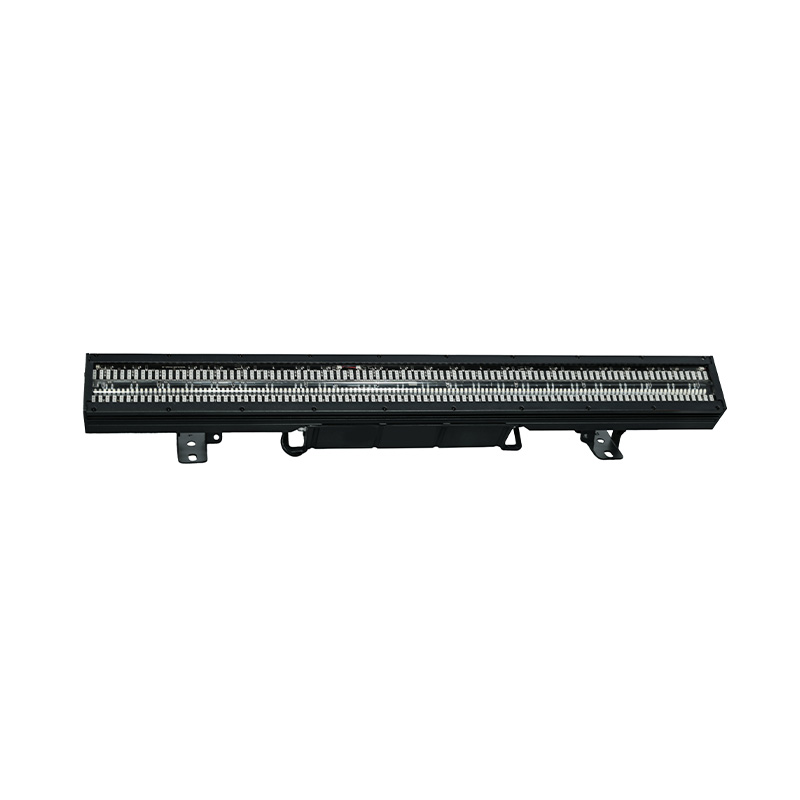

Waterproof 48+48 Segment Pixel Strobe Bar Light

IP67 waterproof pixel strobe bar light with 864 LEDs for stage and architectural lighting
Waterproof 48+48 pixel LED strobe bar light with IP67 rating for outdoor stage lighting
Professional waterproof LED pixel strobe bar for stage visuals and wall wash

Waterproof 48+48 Segment Pixel Strobe Bar Light

IP67 48+48 Pixel Strobe Bar Light with IP67 protection,864 LEDs and 96 pixel segments,delivering strong strobe,chase and smooth wall-wash effects for stages.

  • Brand model :

    QR-MX002
  • Input voltage :

    AC100V–240V, 50/60 Hz
  • Light source :

    864 LEDs, 96 segments
  • Protection level :

    IP67
  • Channel mode :

    CH4, CH14, CH50, CH62, CH96, CH98, CH99, CH192, CH194
Inquiry Now



Function Description


Waterproof 48+48 Pixel Strobe Bar Light is designed for stage and outdoor visual applications.Featuring an IP67-rated housing,it is fully dustproof and waterproof, making it ideal for high-intensity outdoor use.Equipped with 864 high-brightness LEDs and 96 independently controllable pixel segments,it delivers powerful chase and strobe effects while also providing excellent wall-wash performance with smooth,even brightness and wide coverage.Perfect for stage main visuals,background lighting,and architectural façade illumination,it makes any scene stand out instantly.

Technical parameters


Light Source System

  • Light source: 864 LEDs, 96 segments
  • LED life: >20,000 hours

Color System

  • Uniform RGBW color mixing system with rainbow Effect
  • Creates dynamic visuals and rich color variations

Effect

  • Strobe rate: 1–30 Hz
  • Dimming: 16-bit, 0–100% linear dimming
  • Features: Chase Effect and burst strobe

Electrical & Interface

  • Strobe rate: 1–30 Hz
  • Dimming: 16-bit, 0–100% linear dimming
  • Features: Chase Effect and burst strobe

Control & Programming

  • Channels: CH4, CH14, CH50, CH62, CH96, CH98, CH99, CH192, CH194
  • Control modes: DMX512, auto, master/slave, sound active, with RDM function

Fixture Structure

  • Housing material: Metal, black finish
  • Protection level:IP67
  • Working environment:-20°C to 45°C

Size and weight

  • Product size:
  • Net weight:
