Function Description

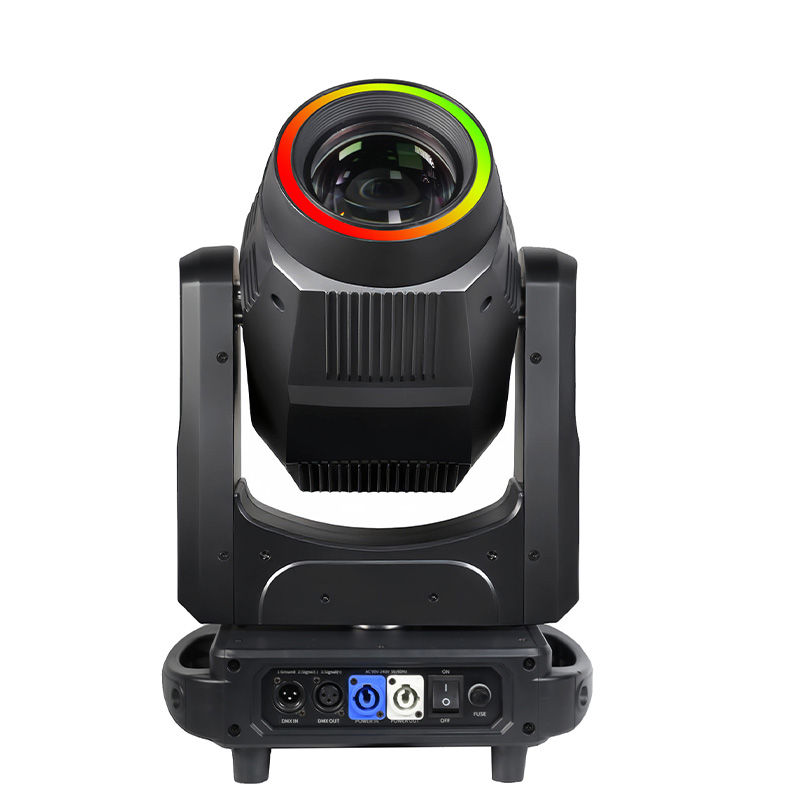

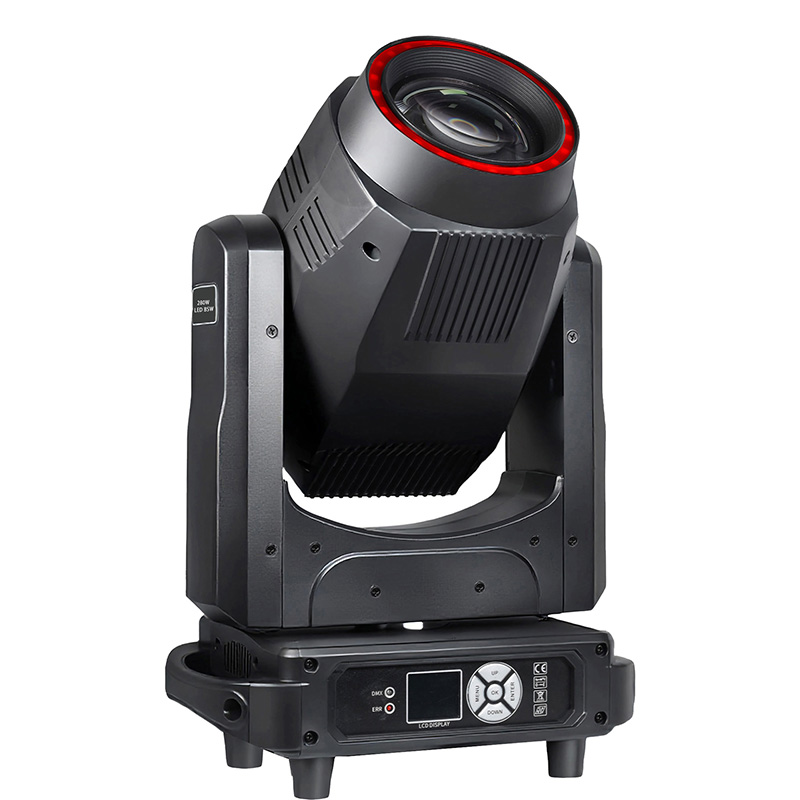

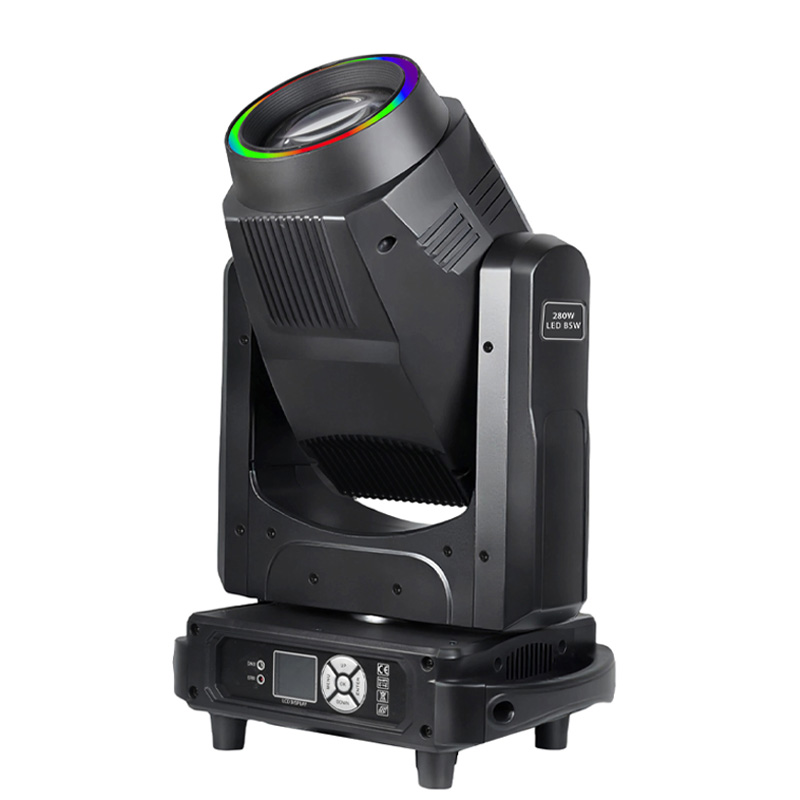

LED 24 auxiliary lights Strip 3-in-1 Moving Head Light 280W,with an overall color temperature of 8522K and a built-in professional light effect system:14 independent color wheels paired with linear CTO color temperature correction deliver accurate and vivid color reproduction;7 rotation pluggable gobos and 5 fixed gobos offer abundant graphic options;3 prisms, electronic strobe,and an independent frost filter (0–100% adjustable) further enhance beam layers and texture performance.
Crafted with a flame-retardant, high-temperature-resistant nylon housing,the fixture is lightweight yet durable,Net weighing only 14.4kg for easy installation, transportation, and quick deployment.Ideal for small-to-medium events, theaters, studios,weddings,and various mobile performances,it’s a professional lighting choice that balances versatility and cost-effectiveness.
Technical parameters
Light Source System
- Light source specification: LED 280W module + 24 auxiliary lights
- Light source color temperature: 8522K
- Light source life: 20000 hours
Optical System
- Zoom range: electron linear zoom 2.8-32 degrees
- Lens diameter:98mm
- Lux:17400 Lux@10m
Color System
- Linear CTO color temperature correction (7200-3200K)
- 1 Independent Color Wheel with 14 Colors, featuring step and linear color-changing modes
Gobo system
- Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
- Gobo sheet size: outer diameter 19.8mm±0.2mm, inner diameter 10mm, thickness 1.1mm
- Fixed gobo wheel:5 fixed gobos+white, which can change speed and shake
Effect
- Prism: 3 facet prisms, can rotate independently in both directions
- Dimming: 0-100% linear adjustment
- Strobe: multiple speed electronic strobe effects
- Frost: 1 independent frost , 0-100% frost, natural and soft light spot
Pan&Tilt
- Pan/Tilt Movement:540°/270°
- Automatically return to its original position and perform 16-bit precision fine-tuning
- Pan and Tilt adopt a precise photoelectric coupling positioning system
Electrical and Interface
- Input voltage: AC100V-240V, 50/60Hz
- Rated power: 320W
- Signal interface: 3-core XLR signal input/output
Control and Programming
- Channel mode: 19/23CH
- Control protocol: standard DMX512/RDM protocol
- Display mode: 1.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
- Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
- Software upgrade: software can be upgraded via DMX signal cable
- Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
Light body structure
- Product appearance: nylon flame-retardant, heat-resistant
- Working environment: -20 °C to 40 ° C
- Protection level: IP20
Size and weight
- Product size: 30*22*55cm (L*W*H)
- Net weight: 14.4kg
